Getting Started#

ModelStudio is a web application for discovering, deploying, and running inference on AI models within the DKubeX platform. It supports three categories of models:

  • LLM models — large language models deployed via KubeAI, sourced from HuggingFace Hub

  • ML models — traditional machine learning models (sklearn, XGBoost, PyTorch, etc.) deployed via KServe, sourced from an MLflow registry or HuggingFace Hub

  • NVIDIA NIM models — production-optimized inference microservices from the NVIDIA NGC catalog, deployed in-cluster on GPU nodes via the k8s-nim-operator

What You Can Do#

  • LLM Catalog — Search HuggingFace LLM models and deploy them with one click

  • LLM Models — View, edit, promote, or delete your deployed LLM models

  • ML Registry — Browse registered MLflow models or HuggingFace ML models and deploy them to KServe

  • ML Models — View and delete your deployed KServe InferenceServices

  • NIM Catalog — Discover NVIDIA NIM models and deploy them in-cluster on your GPU nodes

  • Resource Profiles — Create and manage reusable CPU/memory/GPU configurations for model deployments

  • Settings — Manage NGC API keys for NIM access

  • Run Inference — Chat with models, upload documents for RAG, test vision/embeddings/reranking/image-gen/speech features

  • Track Activity — See a log of all deploy/undeploy actions across your workspace

Overview: The Pages#

Dashboard#

The landing page shows a summary of your workspace:

  • Stats bar — count of deployed models and recent activity

  • Models by Type — breakdown of deployed capabilities (Chat, Embeddings, Reranking, TTS)

  • Model status table — all deployed LLM models with their status, engine, features, scope, and resource profile; filterable by type, status, profile, owner, and replicas

  • ML models tab — (visible when KServe is enabled) same view for deployed ML InferenceServices

  • Activity feed — timestamped log of recent actions (deploys, deletes, scope changes)

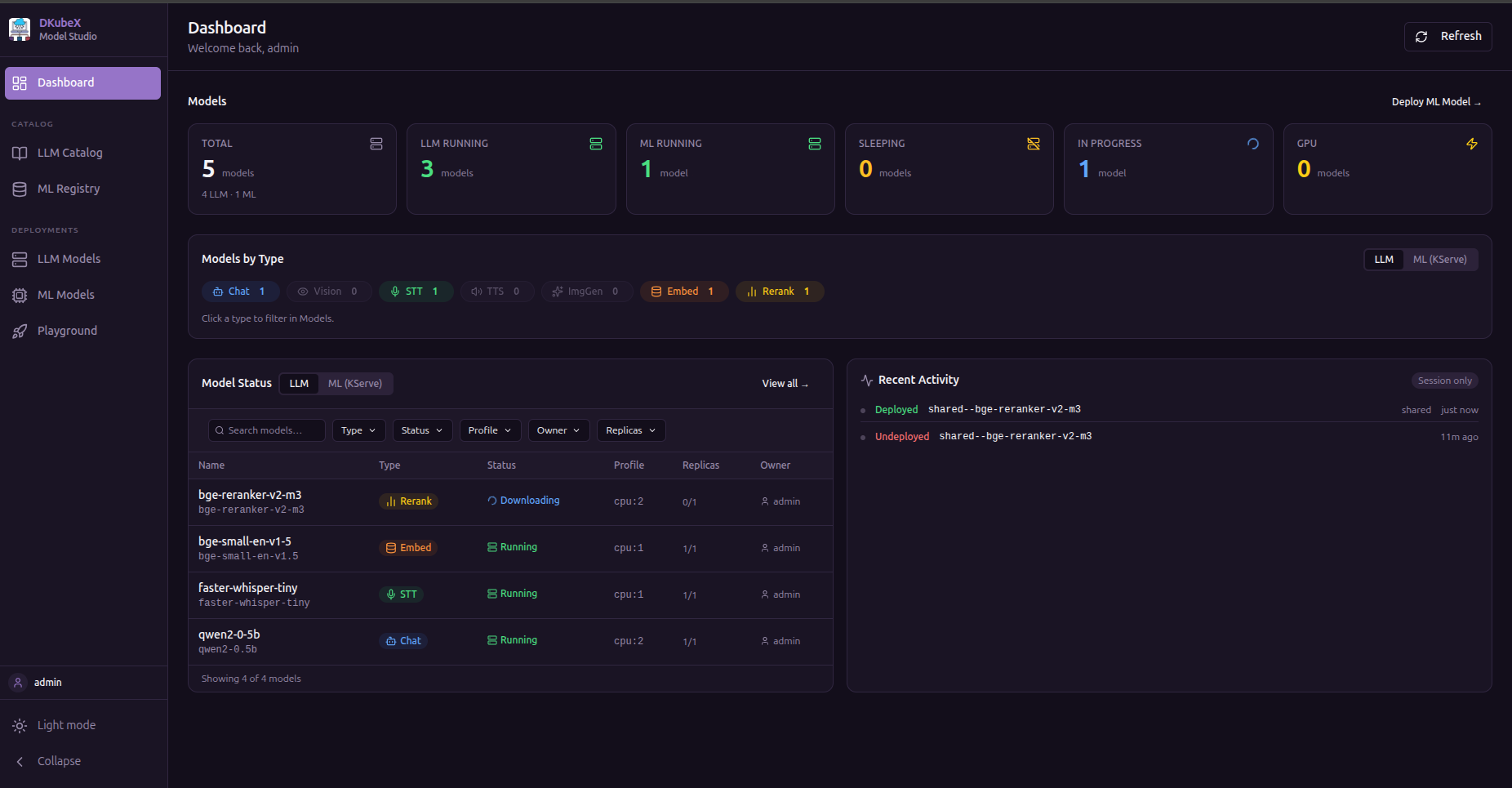

Dashboard overview

LLM Catalog#

Search HuggingFace and deploy LLM models directly.

Tabs:

  • Trending — models gaining momentum on HuggingFace

  • Most Downloaded — sorted by all-time download count

  • Recent — newest models

  • Search Results — results for your search query or HuggingFace URL/slug

Filters:

Filter

Options

Task

Text Generation, Embeddings, Reranking, Text to Speech (Speech Recognition and Image Generation — coming in future KubeAI releases)

Precision

GGUF, Safetensors, PyTorch

Quantization

Q4_K_M, Q4_0, Q5_K_M, Q6_K, Q8_0, FP16, BF16

Input modality

Text, Image, Audio, Video, File

Output modality

Text, Image, Audio, Embeddings, Video

Each model card shows downloads, likes, task type, and an estimated inference cost. Click Deploy to open the deployment form.

Note: Filtering by modality or task for unsupported model types (Vision, Image Generation, STT) will show models in LLM Catalog, but KubeAI cannot yet serve them. Support is planned for future releases.

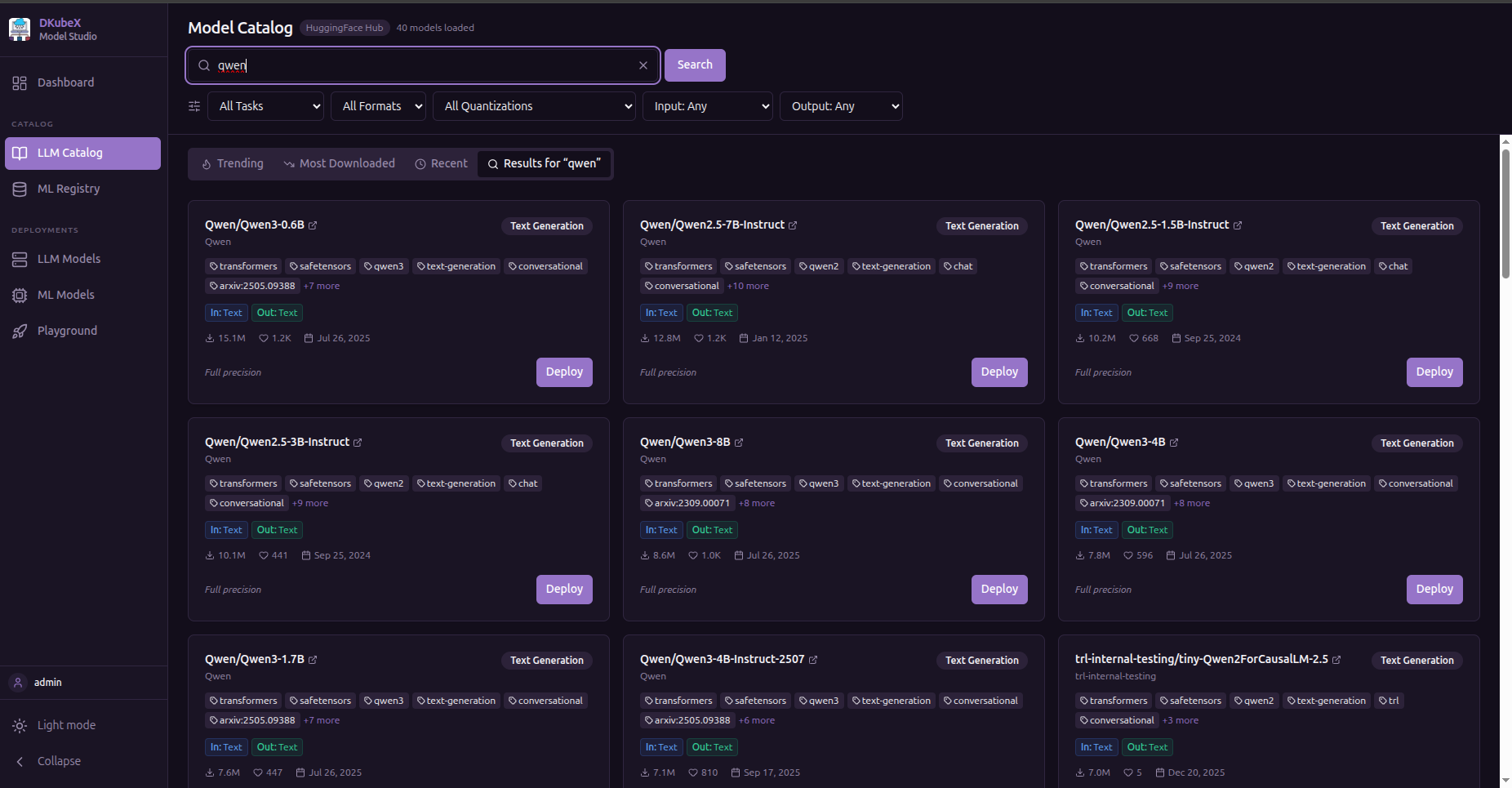

LLM Catalog search results

LLM Models#

A table of all LLM models you have deployed (private) plus any models promoted to shared.

Columns: Name · Engine · Status · Resource Profile · Replicas · Scope · Created At

Actions per row:

Action

Description

Edit

Change resource profile or replica count

Delete

Remove the model deployment

Promote / Demote

Move between private and shared scope

Open Playground

Jump straight to inference for this model

Use the filter bar to narrow by type, status, profile, owner, or replicas.

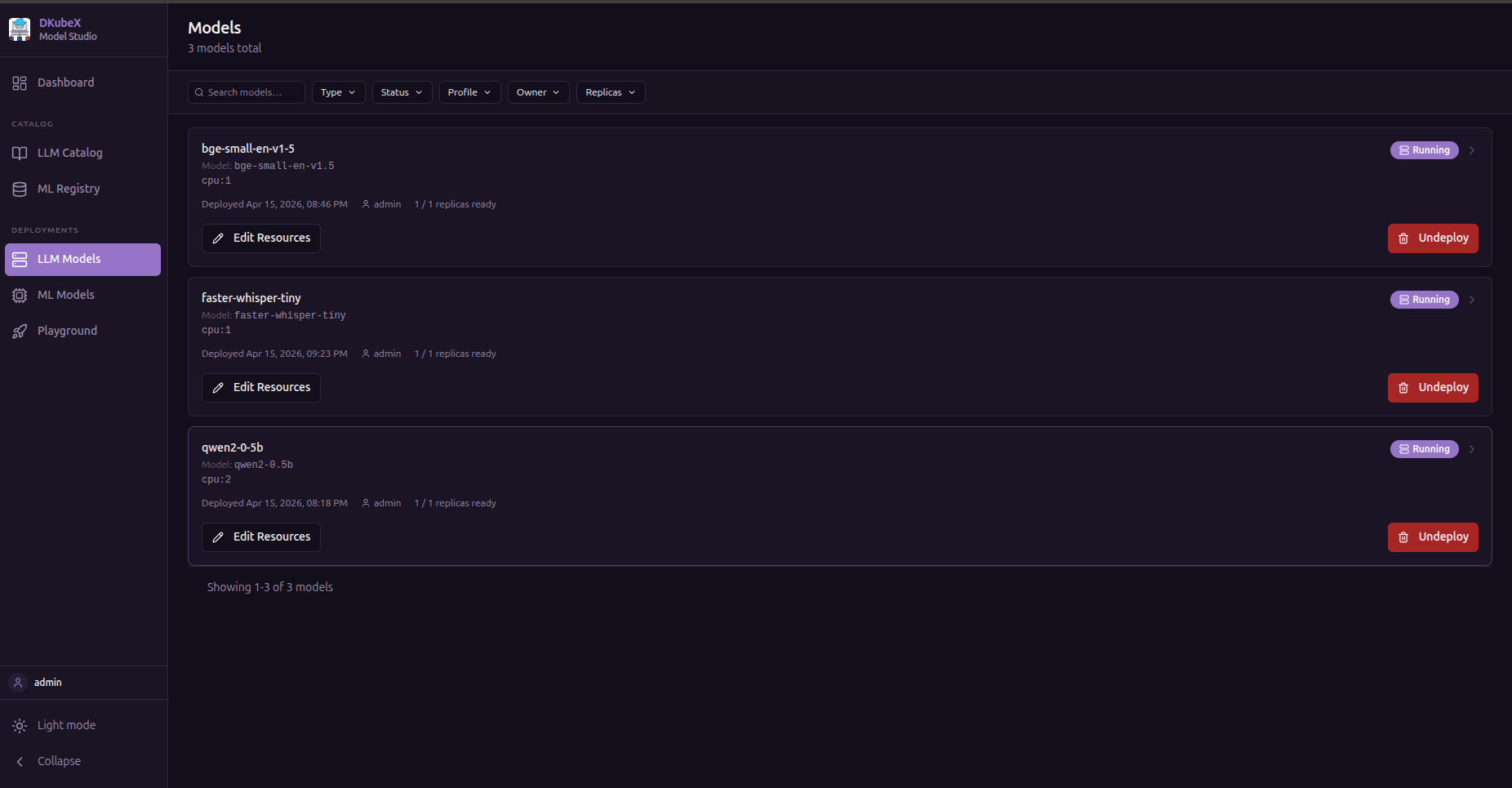

LLM Models table

Playground#

A unified inference workbench for testing your deployed LLM models.

Currently supported model types in KubeAI:

Tab

Description

Chat

Stream text responses from a deployed model

RAG

Upload documents (PDF, DOCX, TXT), retrieve relevant chunks, and ground chat responses

Embeddings

Generate vector embeddings for a piece of text

Reranking

Rerank a list of passages by relevance to a query

Text to Speech

Synthesize speech from text

Token usage (prompt, completion, total) is shown after each response. Responses can be copied to the clipboard.

Coming in future KubeAI releases: Vision (image + text), Image Generation, and Speech to Text will be supported once the corresponding KubeAI model types become available.

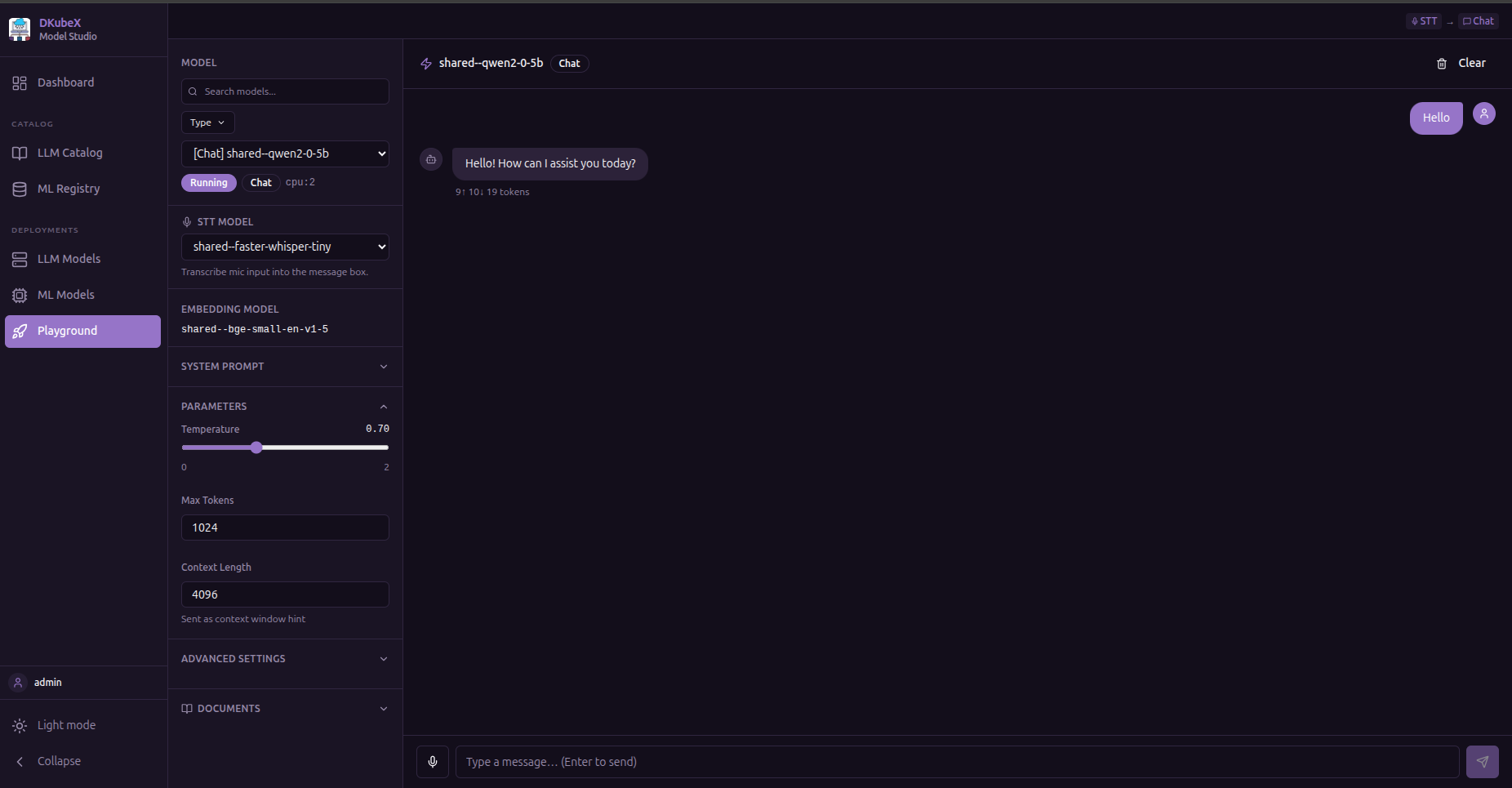

Playground chat interface

ML Registry#

Browse and deploy ML models (non-LLM). Only visible when KServe is enabled in the platform.

Tabs:

  • MLflow — registered models from your MLflow model registry, including all versions and lifecycle stages (None, Staging, Production, Archived). Requires MLflow to be configured in the platform. All model formats (sklearn, XGBoost, LightGBM, TensorFlow, PyTorch, ONNX, MLflow pyfunc, HuggingFace) are deployable.

  • HuggingFace ML — HuggingFace models filtered to ML task types. Only text-based pipeline tasks are supported by kserve-huggingfaceserver. Models with vision, audio, tabular, or multimodal pipeline tags show a Coming Soon badge and cannot be deployed until the runtime adds support.

Click Deploy on any supported model card to open the ML deploy form and create a KServe InferenceService.

ML Models#

A table of all your deployed KServe InferenceServices. Only visible when KServe is enabled.

Filters: format (sklearn, XGBoost, MLflow, HuggingFace, ONNX, PyTorch, TensorFlow), source, status, owner

Actions: view status, delete deployment

Resource Profiles#

Create, edit, and delete named resource configurations (CPU, memory, GPU, replicas) that can be loaded into the deploy forms as shortcuts.

Requires the database feature. Resource Profiles are stored in the configured PostgreSQL database. If the database is not enabled, the page shows a banner with setup instructions.

Each profile captures:

  • CPU request and optional limit

  • Memory request and optional limit

  • Optional GPU type and count

  • Min and max replica counts

Once created, profiles appear in a “Load from Profile” dropdown at the top of both the LLM deploy modal and the ML deploy modal. Selecting a profile pre-fills the resource fields — fields remain editable after loading.

Profiles are workspace-wide: all users can see, load, edit, and delete any profile.

Settings#

Manage configuration for platform integrations. Currently contains NGC API Keys — the credentials needed to access the NVIDIA NGC catalog and inference APIs for NIM models.

  • Add a key — paste your NGC Personal API Key; it is stored securely and only shown as a masked hint (nvapi-****xxxx)

  • Delete a key — removes the saved credential; existing NIM registrations that reference it will stop working

The Settings page is only visible when NIM is enabled in the platform.

Next Steps#

  • Workflows — deploy your first LLM, ML, and NVIDIA NIM model, step by step

  • Deploying Models — advanced deployment options for both LLM and ML models

  • Playground Guide — detailed walkthrough of each inference mode
